Beschrijving

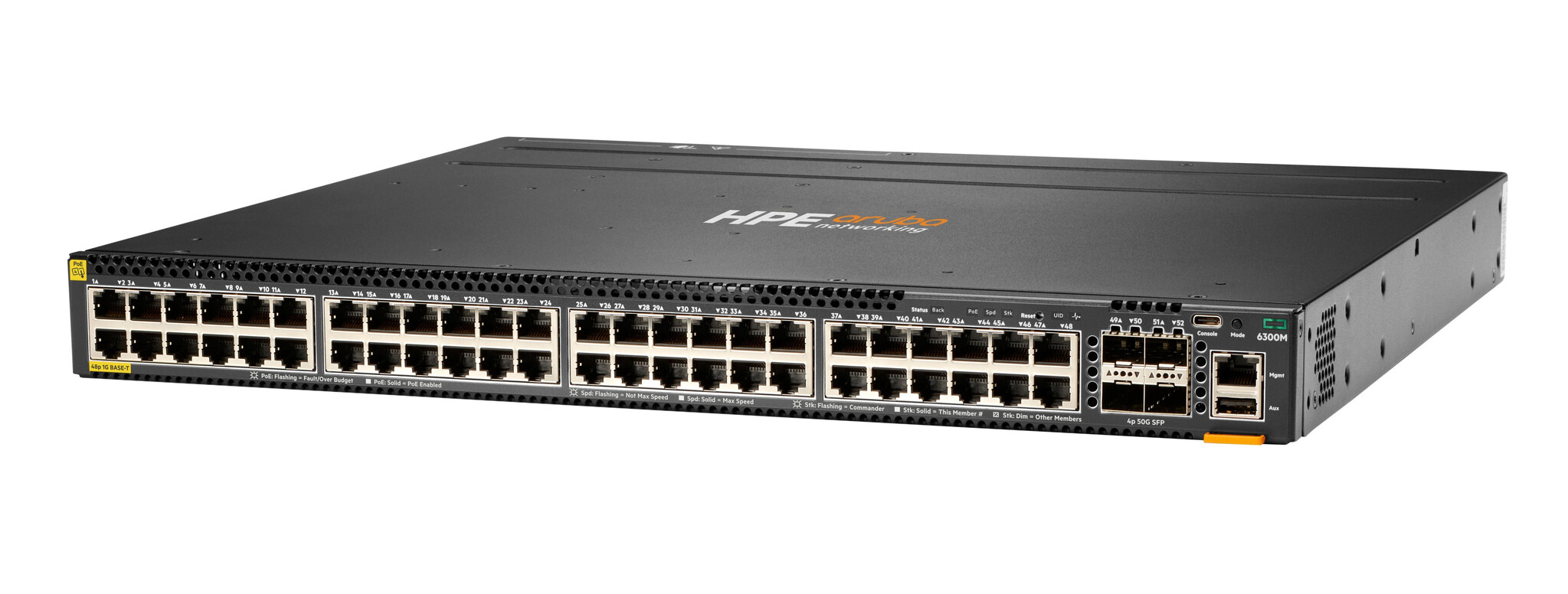

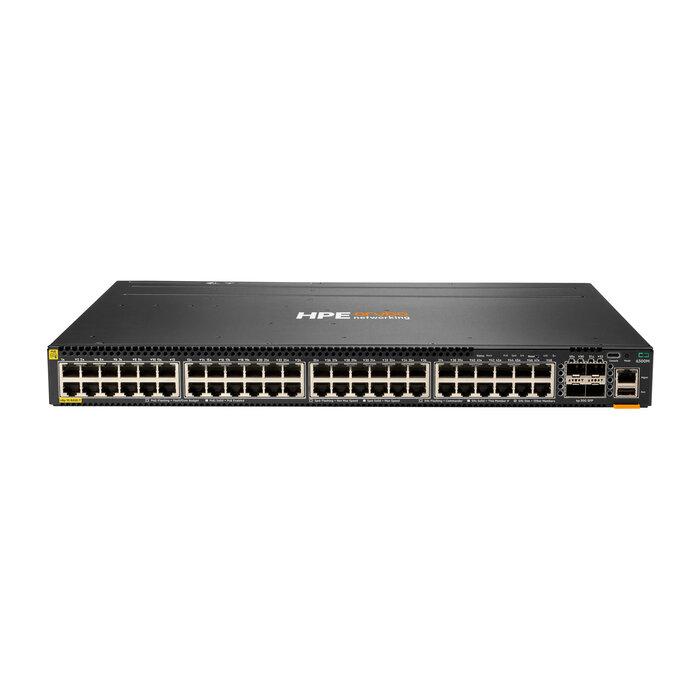

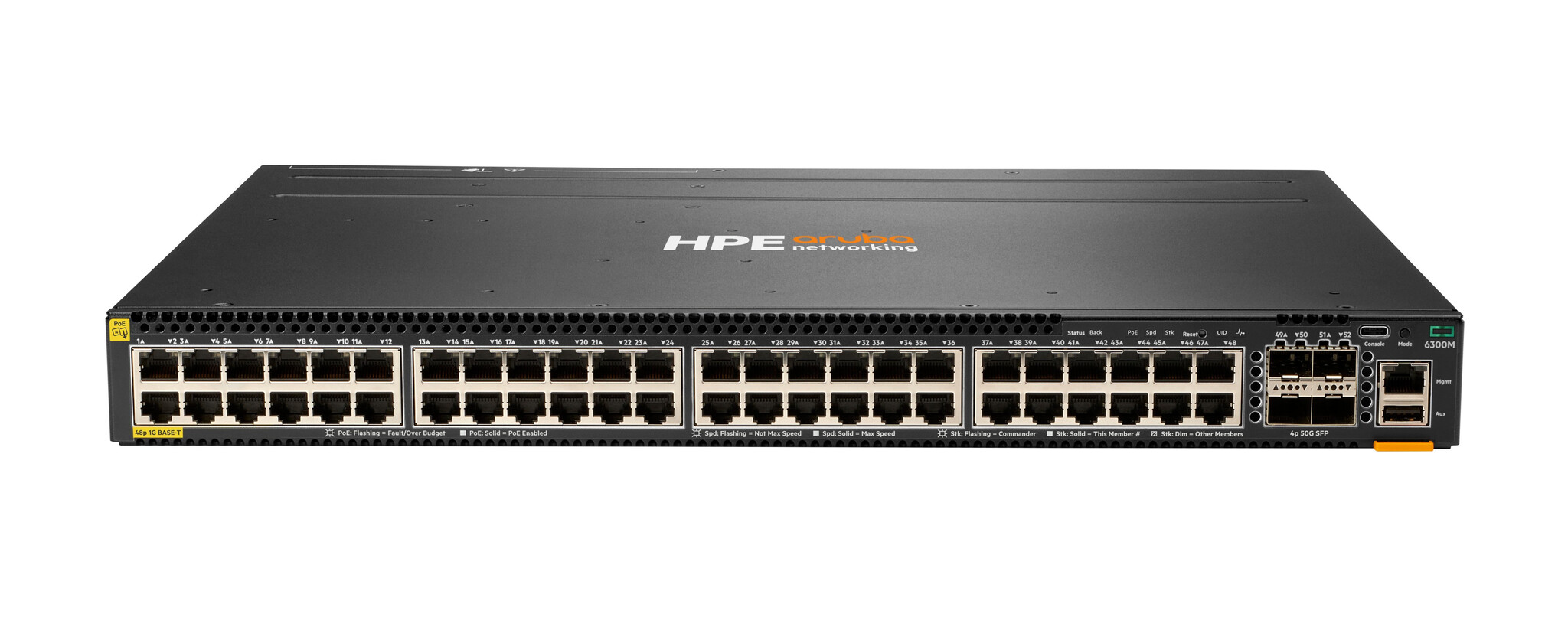

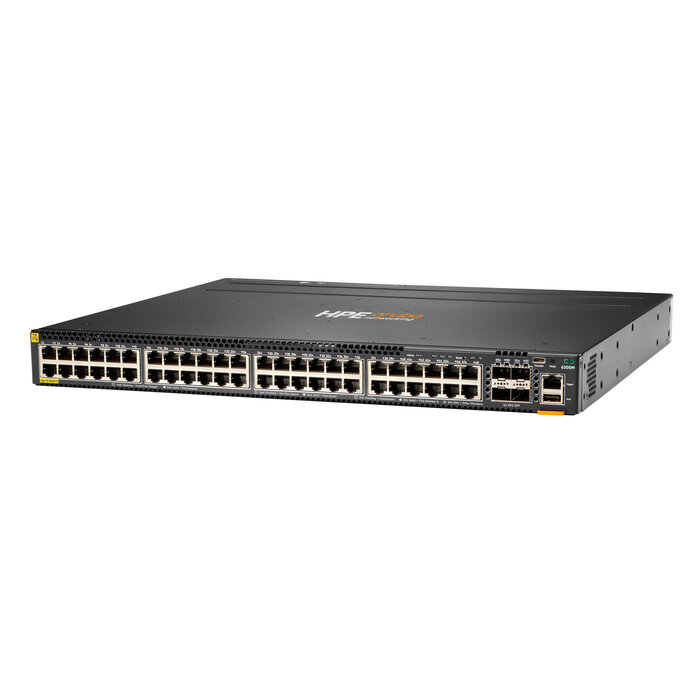

HPE Aruba Networking CX 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48. MAC-adrestabel: 29490 entries, Switchingcapaciteit: 496 Gbit/s. Netwerkstandaard: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack-montage, Vormfactor: 1U

Specificaties

Beheerfuncties

Switch type

Managed

Switch-laag

Quality of Service (QoS)

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten

Type basis-switching RJ-45 Ethernet-poorten

Gigabit Ethernet (10/100/1000)

Aantal moduleslots SPF

Netwerk

Netwerkstandaard

IEEE 802.3af, IEEE 802.3at

10G support

Port mirroring

Datastroombeheer

Verbindingsaggregatie

Rate limiting

Auto MDI/MDI-X

Spanning tree protocol

VLAN=ondersteuning

Optische vezel

Transmissie afstand (max)

10 km

Data-uitwisseling

Switchingcapaciteit

496 Gbit/s

Throughput

369 Mpps

MAC-adrestabel

29490 entries

Latentie (1 Gbps)

2,28 µs

Latentie (10 Gbps)

1,46 µs

Jumbo Frames ondersteuning

Packet buffergeheugen

8 MB

Beveiliging

DHCP-functies

DHCP server

Access Control List (ACL)

IGMP snooping

SSH/SSL support

Multicast-functies

Multicast-ondersteuning

Protocollen

Routing protocols

BGP

Design

Rack-montage

Stapelbaar

Vormfactor

Kleur van het product

Zwart

Prestatie

Physical stacking (units)

Type processor

Processormodel

ARM Cortex-A72

Frequentie van processor

1800 MHz

Type geheugen

DDR4-SDRAM

Intern geheugen

8000 MB

Flash memory

32000 MB

Energie

Vermogenstoevoer inclusief

AC-ingangsspanning

100 - 240 V

Energieverbruik opmerking

With JL086A PSU: Idle: 70W 100% Traffic Rate: 90W With JL087A PSU: Idle: 71W 100% Traffic Rate: 88W With JL670A PSU: Idle: 73W 100% Traffic Rate: 96W

Netvoeding voetnoot

2 field‐replaceable, hot‐swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL086A, JL087A and JL670A.

Power over Ethernet (PoE)

Totaal Power over Ethernet (PoE)-budget

1440 W

Overige specificaties

Latentie

1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs

Geheugen en processor

CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration

Aansluitingen

48 x 10/100/1000 BaseT PoE+ ports supporting up to 30W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port

Prestatiebeheer

Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software

Gewicht (imperiaal)

5,16 kg (11.4 lbs)

Afmetingen (B x D x H) (Brits)

43,9 x 442 x 386,1 mm (1.73 x 17.4 x 15.2")

Fan

Switch has two fan tray slots and comes with one fan tray installed. Minimum one fan tray required. Fan trays are field replaceable and hot‐swappable. Each fan tray contains two fans.

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)

0 - 45 °C

Temperatuur bij opslag

-40 - 70 °C

Relatieve vochtigheid in bedrijf (V-V)

15 - 95 procent

Gewicht en omvang

Breedte

44 mm

Diepte

442 mm

Hoogte

385 mm

Gewicht

5,16 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)

85176990

Lees meer

HP EnterpriseHPE Aruba Networking CX 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart
