Art: 21230235EAN: 4711387324547

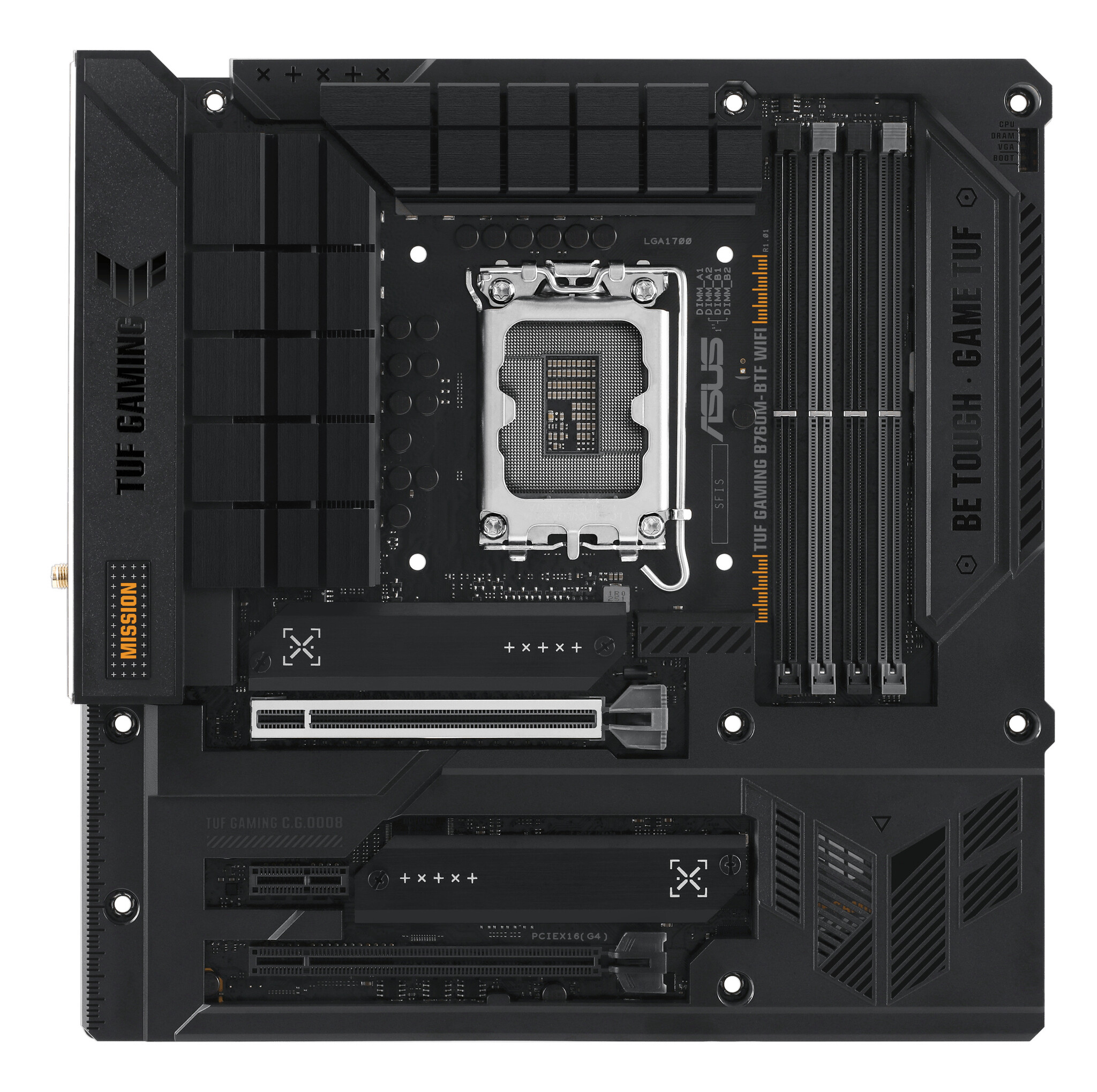

AsusASUS TUF GAMING B760M-BTF WIFI Intel B760 LGA 1700 micro ATX
Alleen voor zakelijke klanten
Gratis verzending vanaf € 200,-
Snelle klantenservice met kennis van zaken
25+ jaar ervaring in storage
Beschrijving
ASUS TUF GAMING B760M-BTF WIFI. Processorfabrikant: Intel, Processor socket: LGA 1700, Compatibele processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 192 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Ondersteunde types opslag-drives: HDD & SSD, Soorten RAID: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Wifi-standaard: Wi-Fi 6 (802.11ax), Wi-Fi-standaarden: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component voor: PC, Moederbord form factor: micro ATX, Moederbord chipset familie: Intel
Lees meerLees minderSpecificaties
Processor
Processorfabrikant
Intel
Processor socket
LGA 1700
Compatibele processors
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Geheugen
Ondersteunde geheugen types
DDR5-SDRAM
Aantal geheugenslots
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Ondersteunde geheugenkloksnelheid (max)
7200 MHz
Maximum intern geheugen
192 GB
Niet gebufferd geheugen
Opslag-controllers
Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces
M.2, SATA III
Maximum aantal HDD's per behuizing
4
Aantal storage drives ondersteund
7
RAID support
Soorten RAID
0, 1, 5, 10
Grafisch
Ondersteuning voor parallel processing
Niet ondersteund
Interne aansluitingen
USB 2.0 aansluitingen
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen
1
USB 3.2-connectoren (3.1 Gen 2)
1
Aantal SATA III connectors
4
Aansluiting voor audiopaneel aan voorzijde
ATX Power connector (24-pin)
Aansluiting voor CPU koeler
Aansluitingen voor behuizingsventilatoren
3
Peripheral (Molex) power connectors (4-pin)
1
EPS power connector (8-pin)
COM aansluitingen
1
Thunderbolt-headers
1
12V vermogen-connector
RGB LED-aansluitrail
Aansluitingen achterzijde
Aantal USB 2.0-poorten
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
1
Aantal USB 3.2 Gen 2.2 Type-C-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten
1
Aantal HDMI-poorten
1
HDMI versie
2.1
Aantal DisplayPorts
1
DisplayPort versie
1.4
Hoofdtelefoonuitgangen
1
Lijningang
Microfoon, line-in ingang
WiFi-AP antenna jack
1
Netwerk
Ethernet LAN
Ethernet interface type
2.5 Gigabit Ethernet
Wifi
Wifi-standaard
Wi-Fi 6 (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Bluetooth-versie
5.2
Kenmerken
Chipset moederbord
Intel B760
Audio-uitgangskanalen
7.1 kanalen
Component voor
PC
Moederbord form factor
micro ATX
Moederbord chipset familie
Intel
Type koeling
Passief
Type stroombron
ATX
Ondersteunt Windows
Windows 11, Windows 10
Uitbreidingsmodules
PCI Express x1 (Gen 4.x) sleuven
1
PCI Express x16 (Gen 4.x) sleuven
1
PCI Express x16 (Gen 5.x) sleuven
1
Aantal M.2 (M) slots
3
BIOS
BIOS type
UEFI AMI
Grootte BIOS-geheugen
128 Mbit
Clear CMOS knop
Gewicht en omvang
Breedte
244 mm
Diepte
244 mm
Inhoud van de verpakking
Meegeleverde kabels
SATA
Gebruiksaanwijzing
Overige specificaties
Audio-uitgang
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Speciale eigenschappen
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled.
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled.
Andere kenmerken
4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under
the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under
the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Grafische uitvoer
1 x DisplayPort**
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
