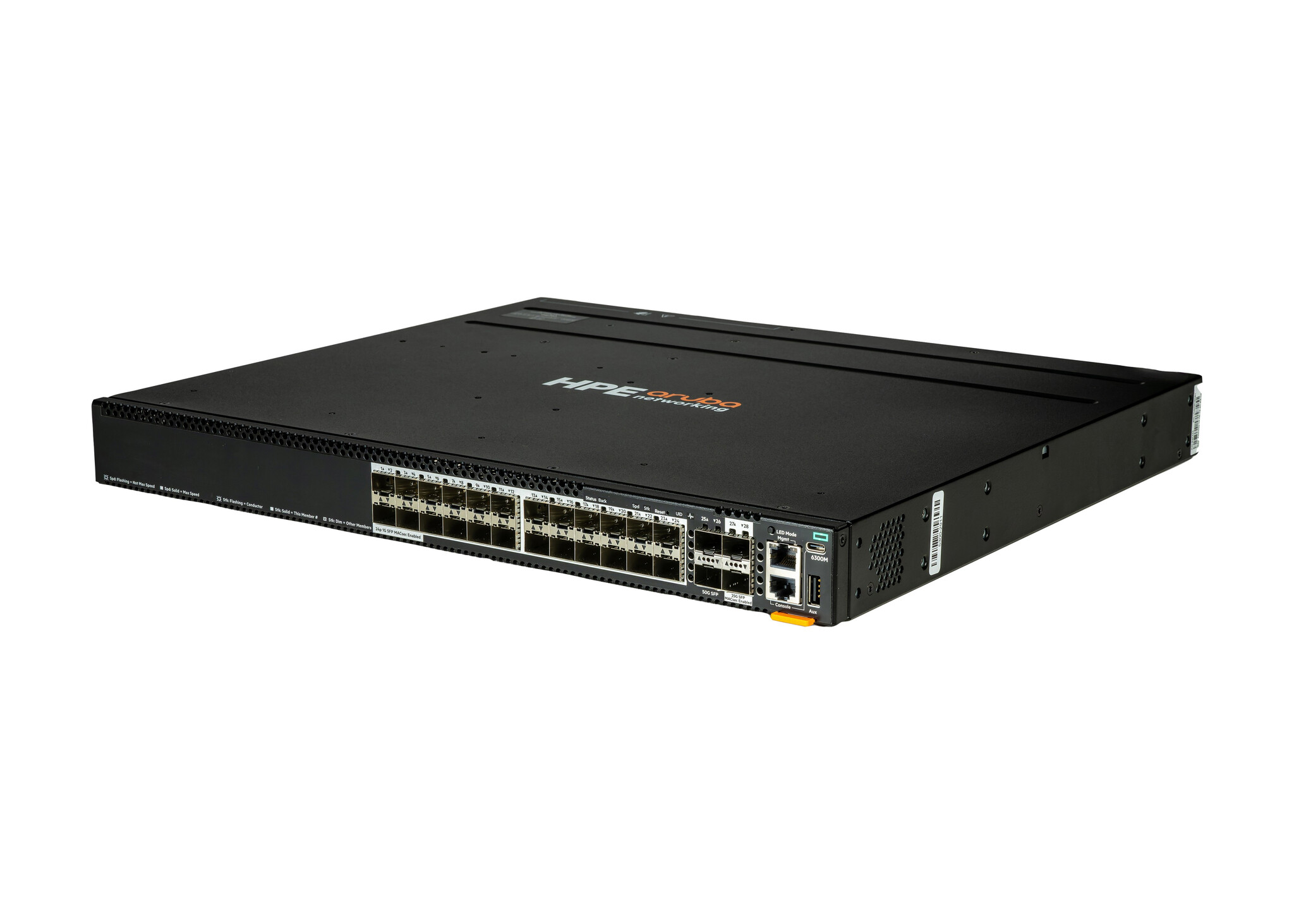

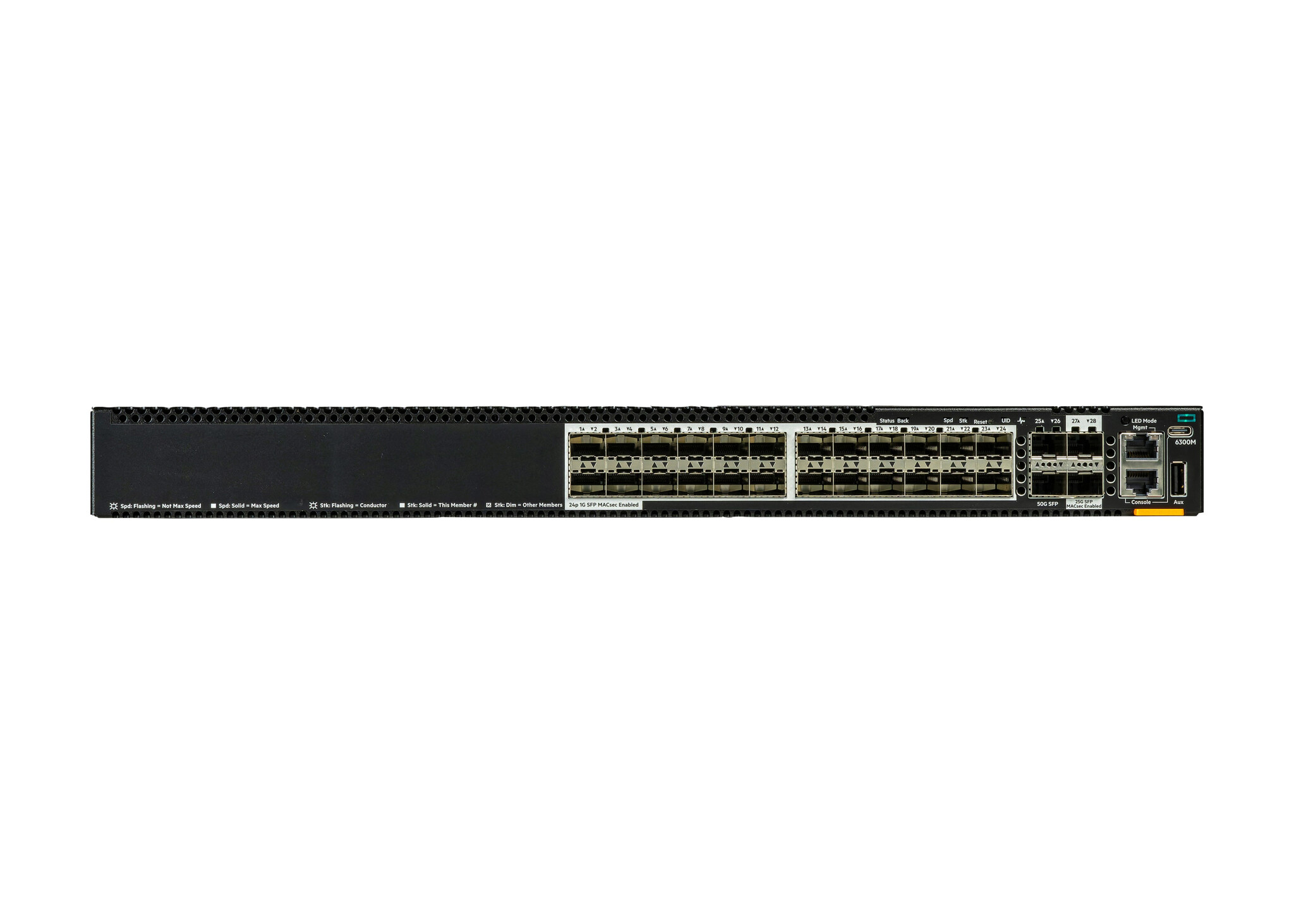

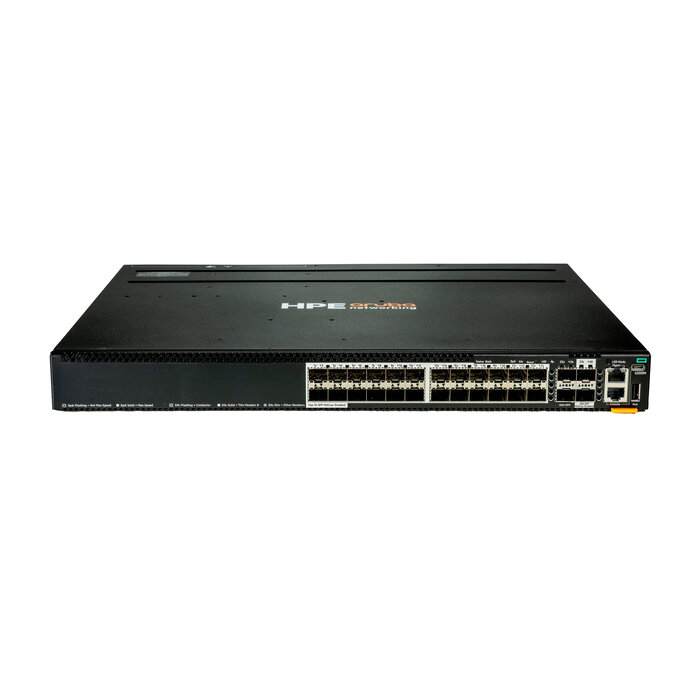

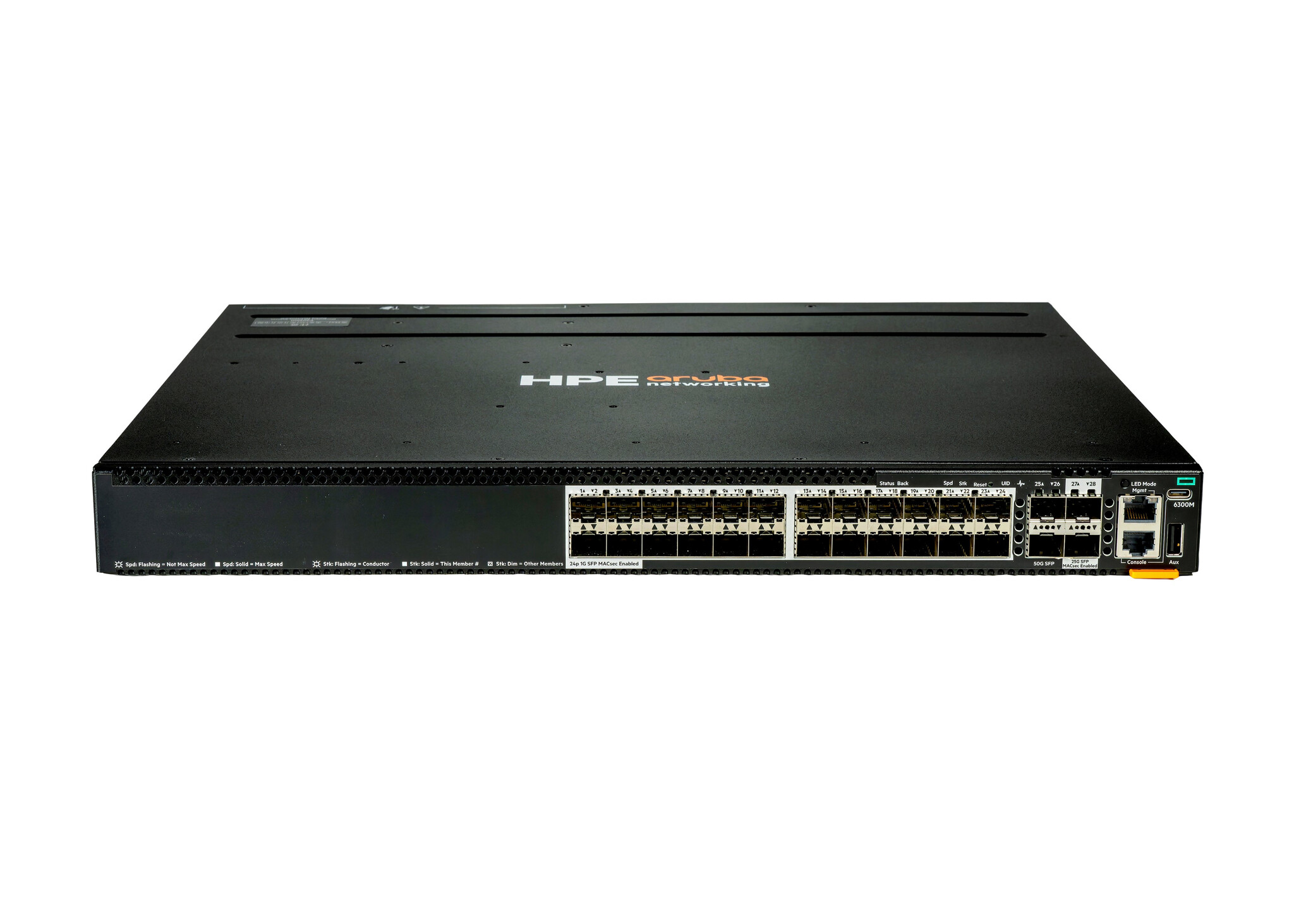

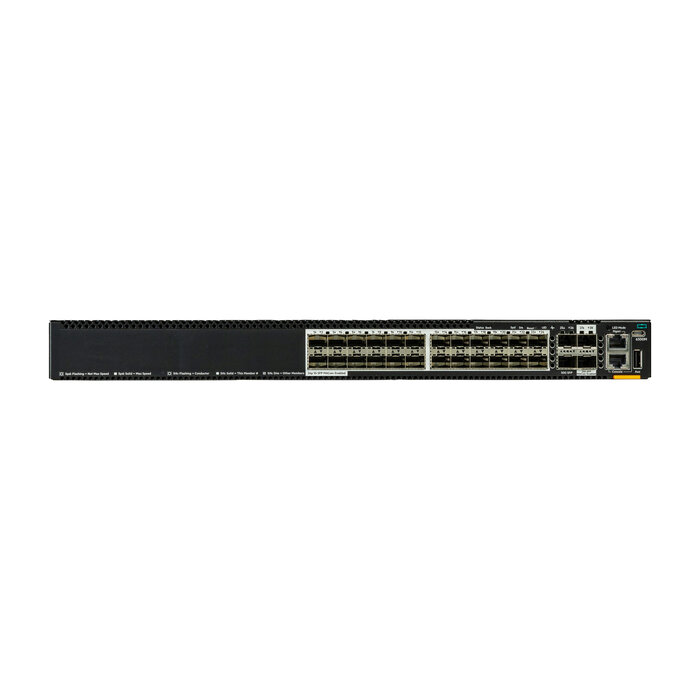

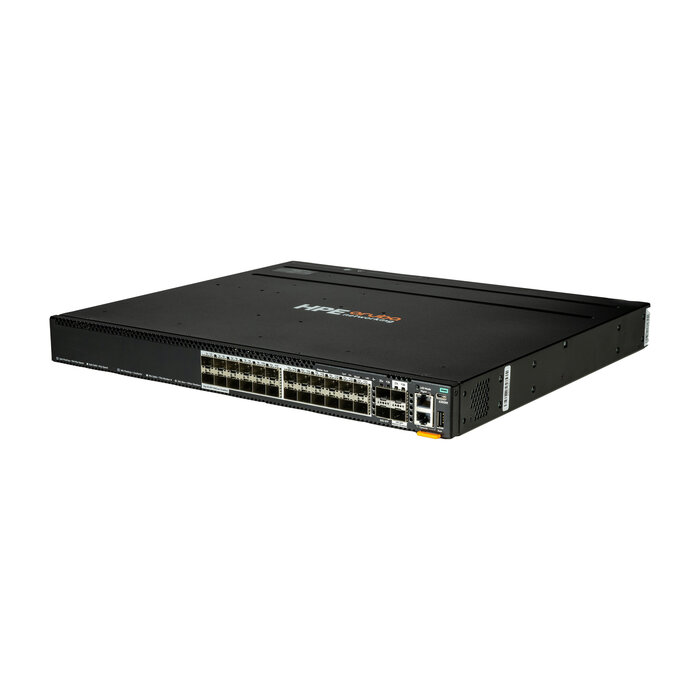

HP EnterpriseHPE Aruba Networking 6300M 24p SFP 1G 2p SFP28 25G MACsec 2p SFP56 50G Switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Zwart

Managed

L3

48

10G Ethernet (100/1000/10000)

4

USB

IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

880 Gbit/s

654 Mpps

4,24 µs

1,5 µs

1U

Zwart

2 ventilator(en)

10

ARM

ARM Cortex-A9

1800 MHz

DDR4-SDRAM

8000 MB

32000 MB

AC/PoE

With JL086A PSU: Idle: 133W 100% Traffic Rate: 199W With JL087A PSU: Idle: 138W 100% Traffic Rate: 193W With JL670A PSU: Idle: 140W 100% Traffic Rate: 201W

2 field-replaceable, hot-swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL085A and JL757A.

2880 W

1 Gbps: 4.24 μs 10 Gbps: 1.50 μs 25 Gbps: 2.91 μs 50 Gbps: 3.49 μs

CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration

48x HPE Smart Rate 100M [5]/1G/2.5G/5G BaseT Class 6 PoE ports supporting up to 60W per port 4x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1x USB-C console port 1x USB Type-A host port 1x OOBM port [5] 100M use on HPE Smart Rate ports is limited to full‐duplex only. For 100M half‐duplex support, use 1G ports on other models. [4] 450G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which require QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.

Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software

6,02 kg (13.3 lbs)

Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‐swappable. Each fan tray contains two fans.

0 - 45 °C

44 mm

442 mm

6,02 kg
